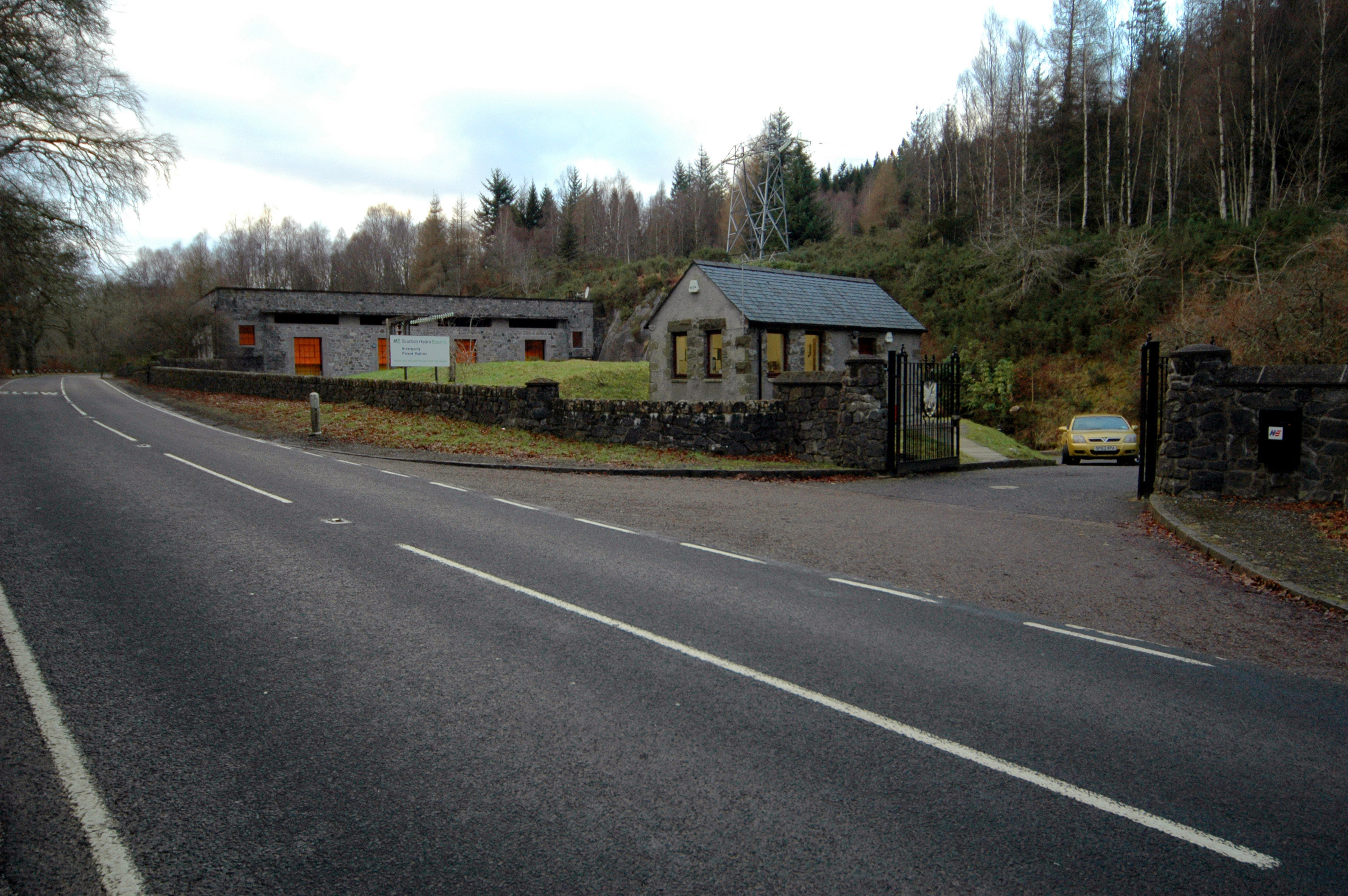

Invergarry Power Station![]() OS Grid Ref: NH 31916 013025 Invergarry power station, hidden away by the A82: Photo by: Mike Ross Looking down the access road to Invergarry power station: Photo by: Mike Ross An archive view of Invergarry immediately after completion, taken from

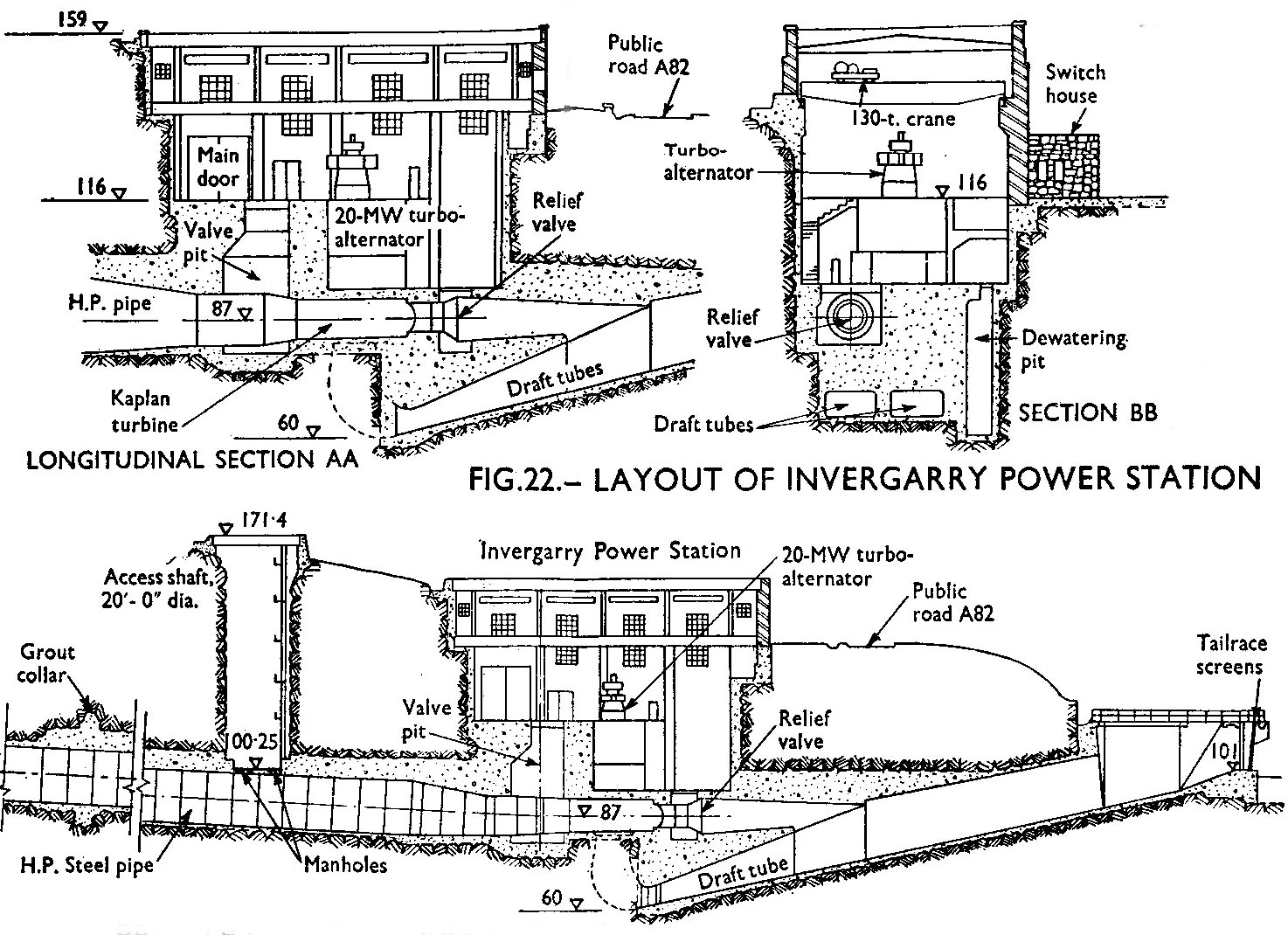

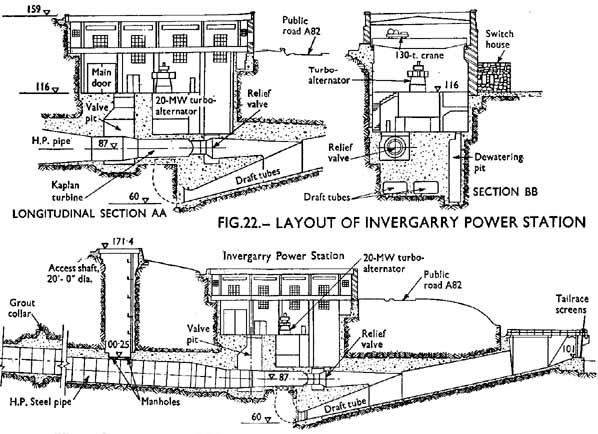

Loch Oich, looking at the tailrace outfall: Photo by: Mike Ross This drawing clearly illustrates the general arrangement of the power station: Photo by: Scanned by Mike Ross, from Proceedings of Institute of Civil Engineers 1958 Walking through the entrance doors, there's a large open loading bay, with
just the exciter of the alternator standing above floor level. Invergarry
is mostly underground; everything below the windows and crane rail is below
ground level: Photo by: Mike Ross Looking back across the loading bay from the area adjacent to the alternator.
The blue object to the right is the cover for the small alternator at Loyne

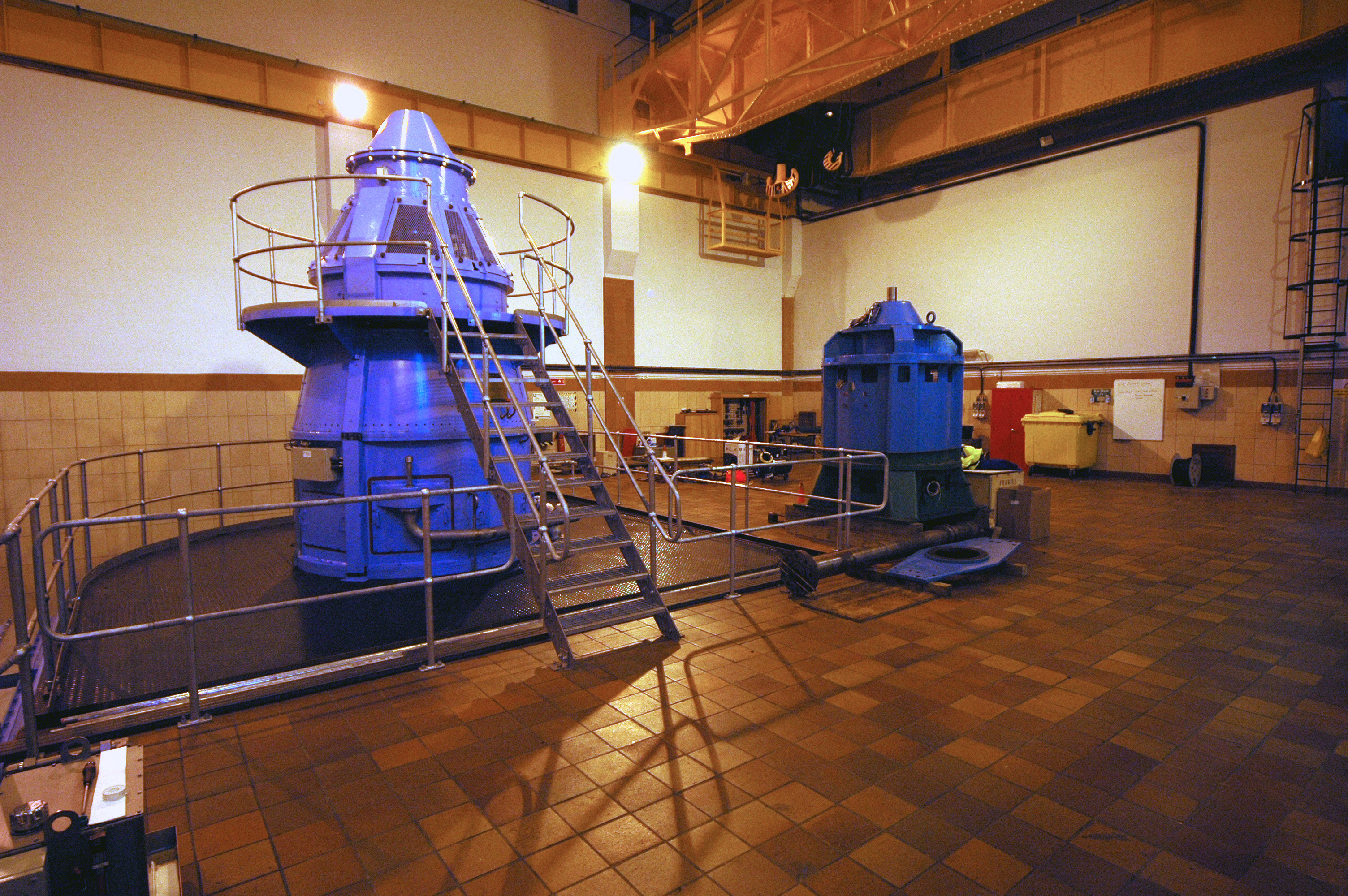

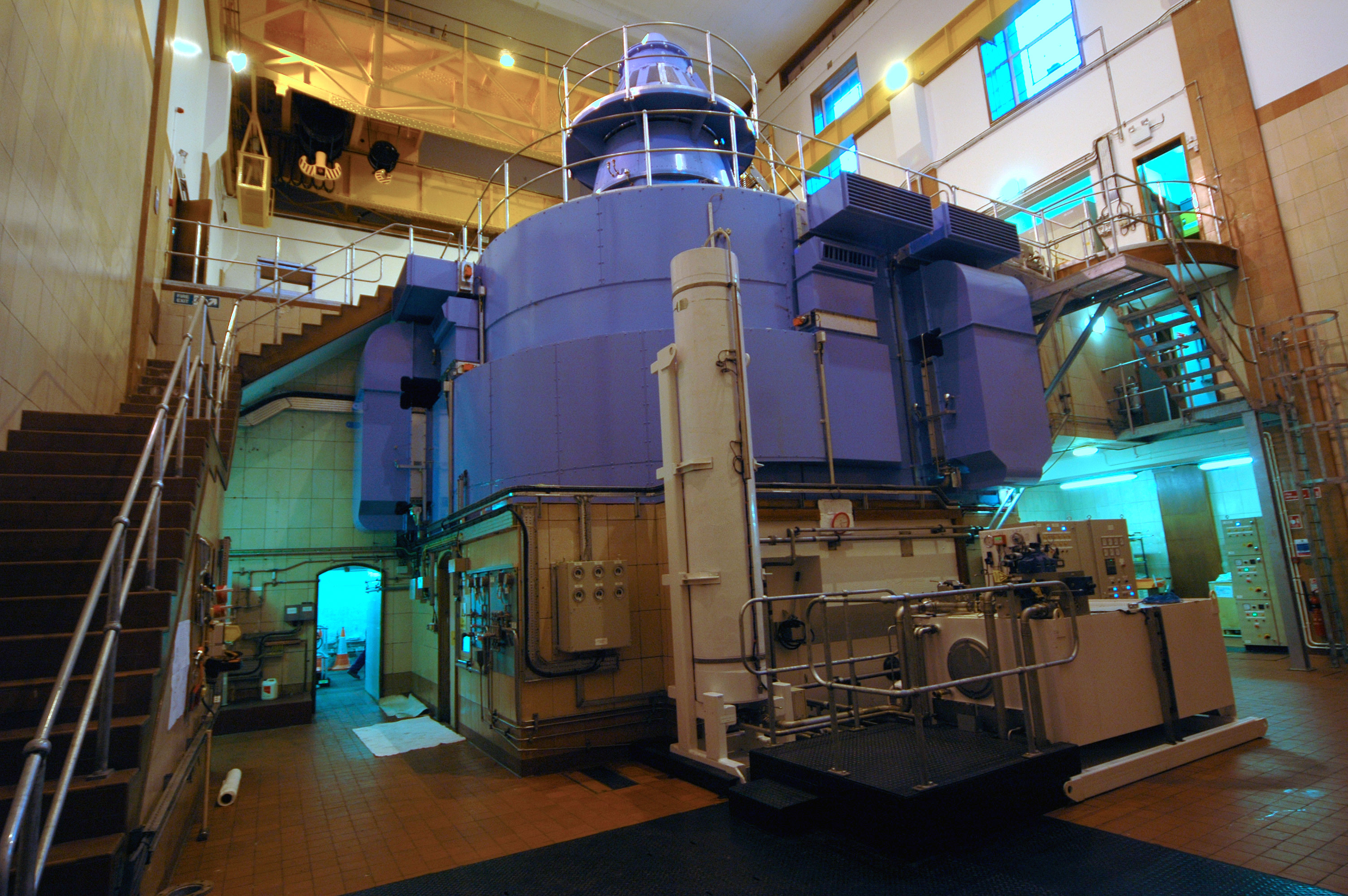

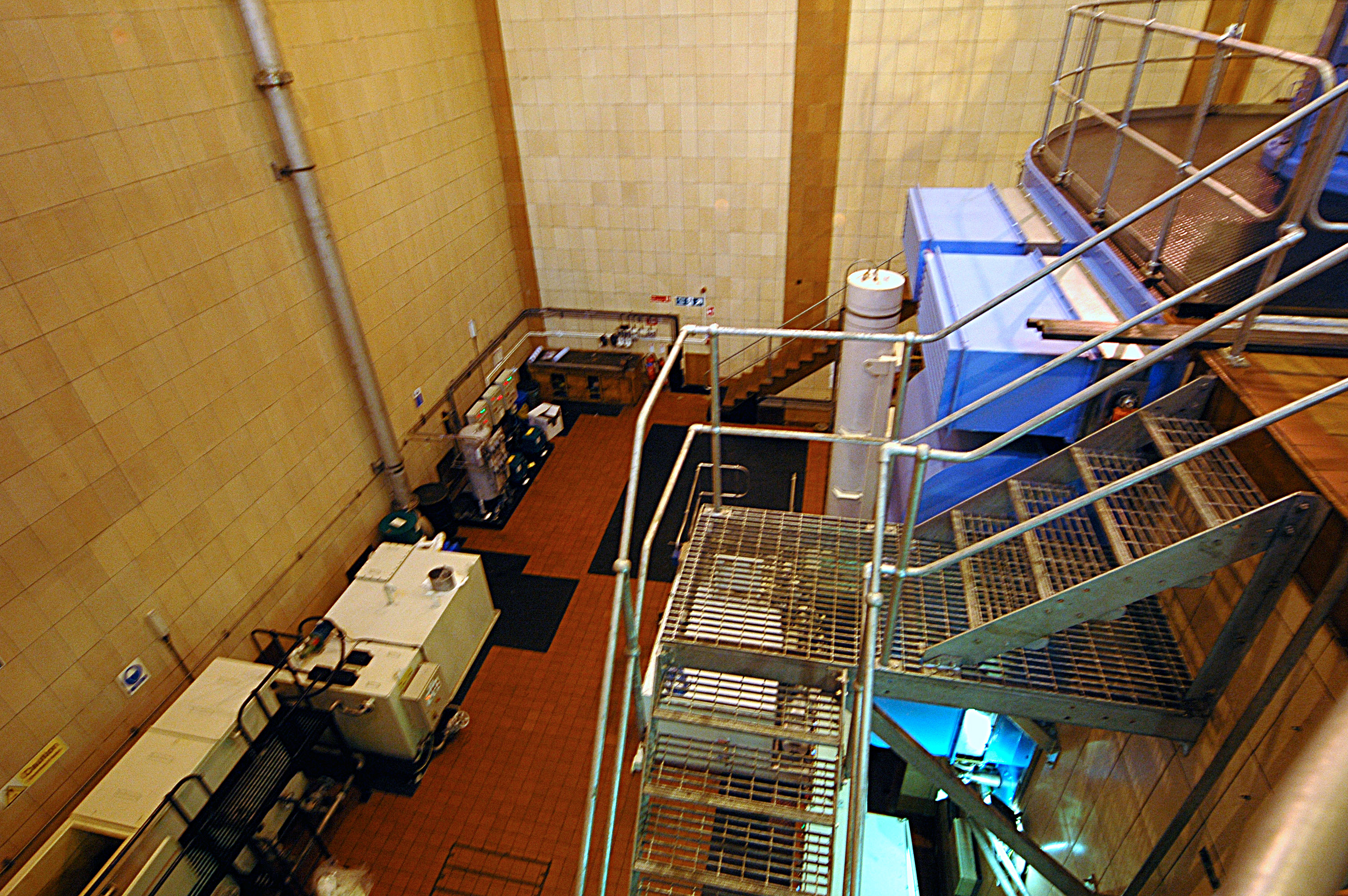

dam; it was just being stored at Invergarry whilst Loyne was being refurbished: Photo by: Mike Ross Looking down from the above viewpoint to turbine floor level: Photo by: Mike Ross On the turbine floor, looking back up at the alternator and loading bay.
The doorway on the bottom left below the stair leads through to the inlet
valve chamber. The black square beneath my feet is the access hatch to

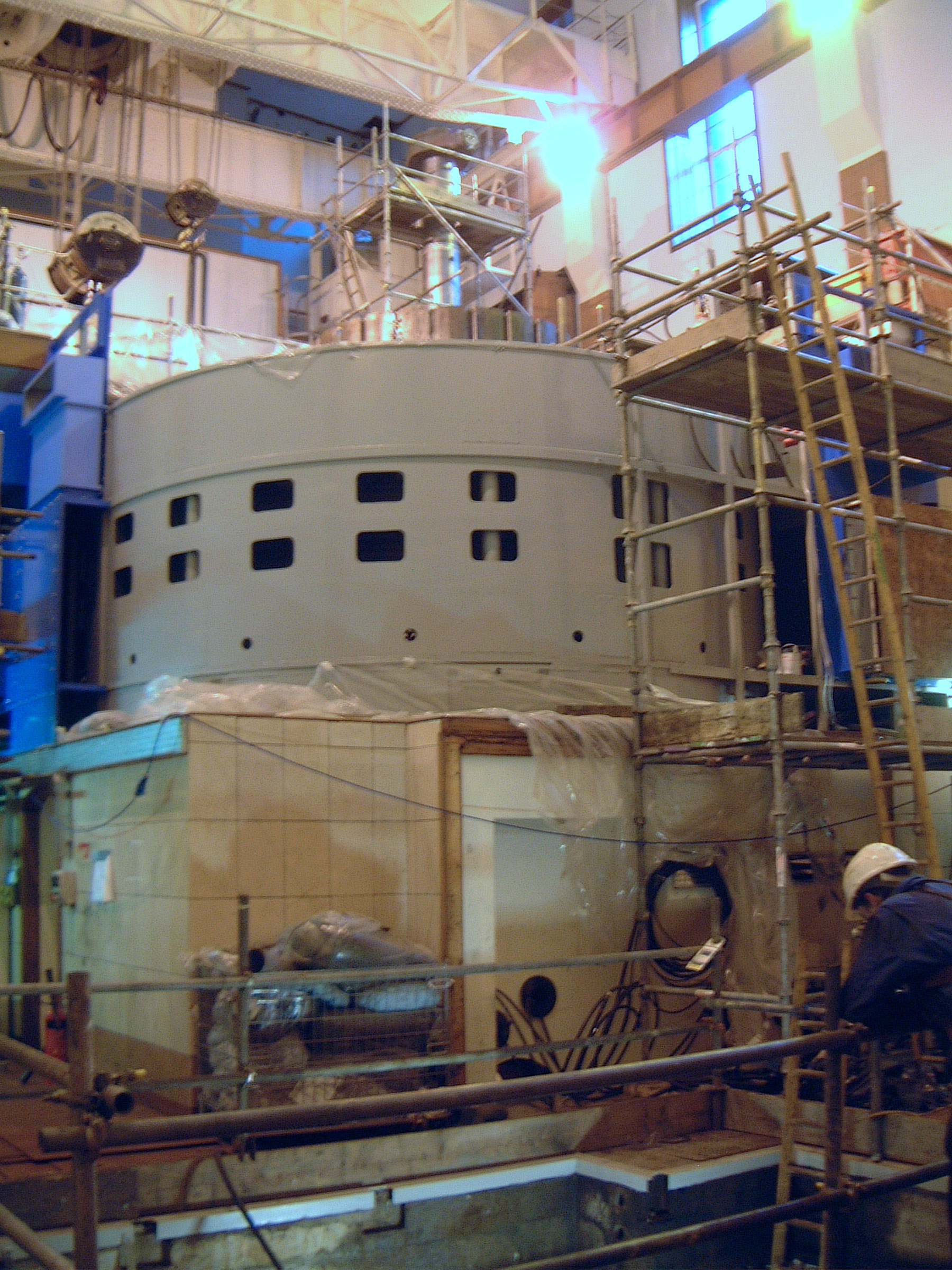

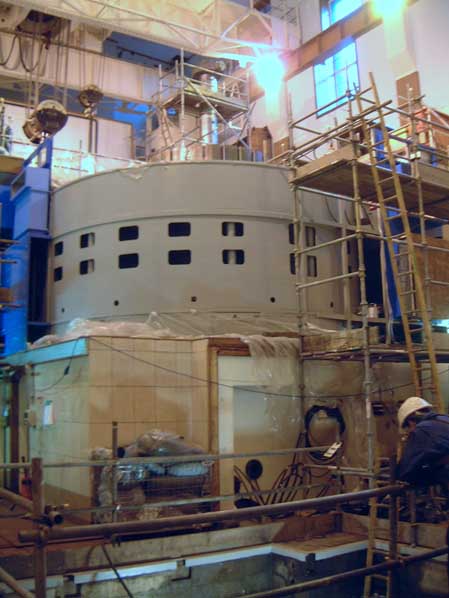

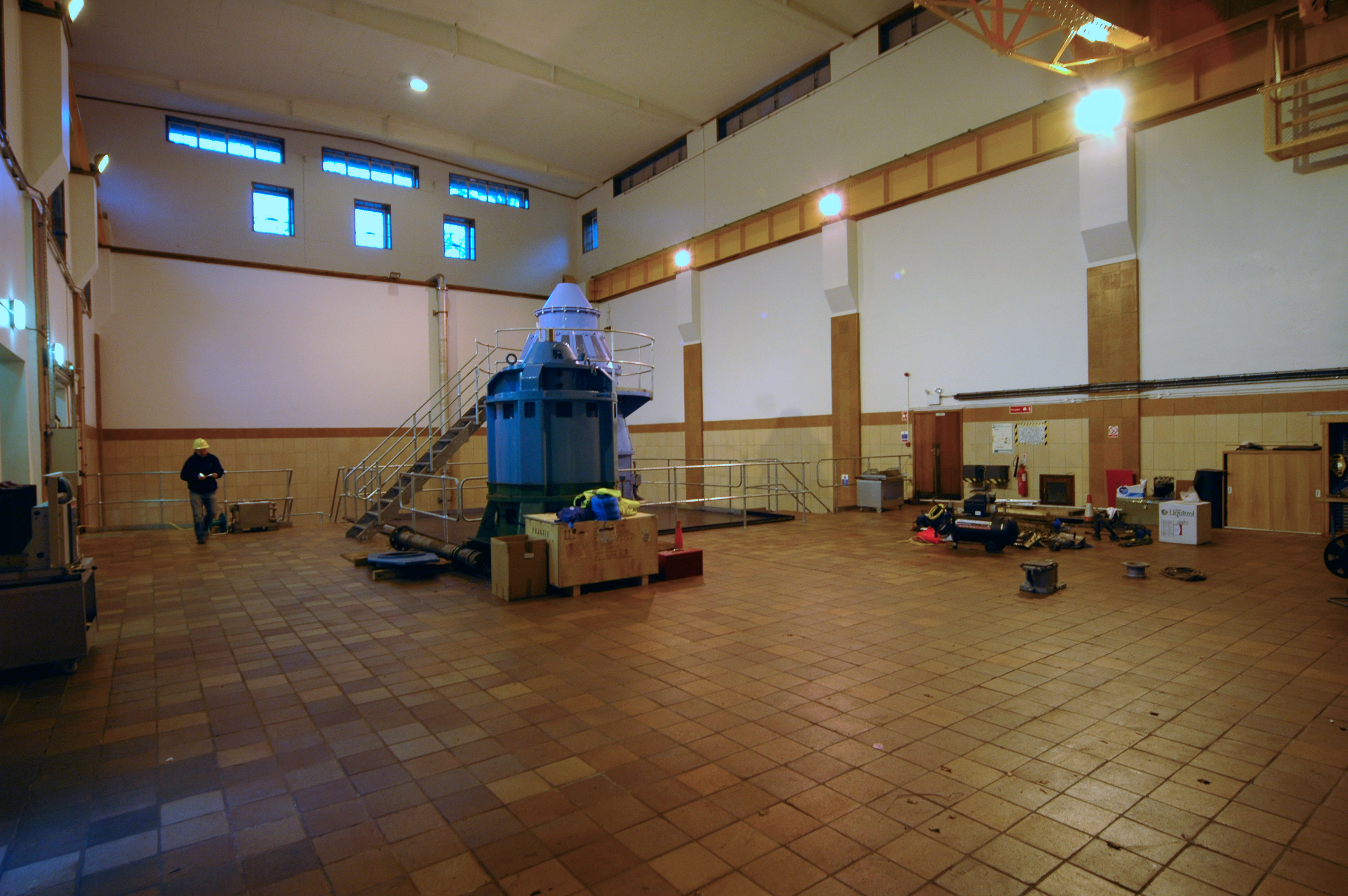

the relief valve: Photo by: Mike Ross The above picture was taken post-refurbishment. This image, taken during
refurbishment back in 2003, shows the same area. The blue ventilation ductwork

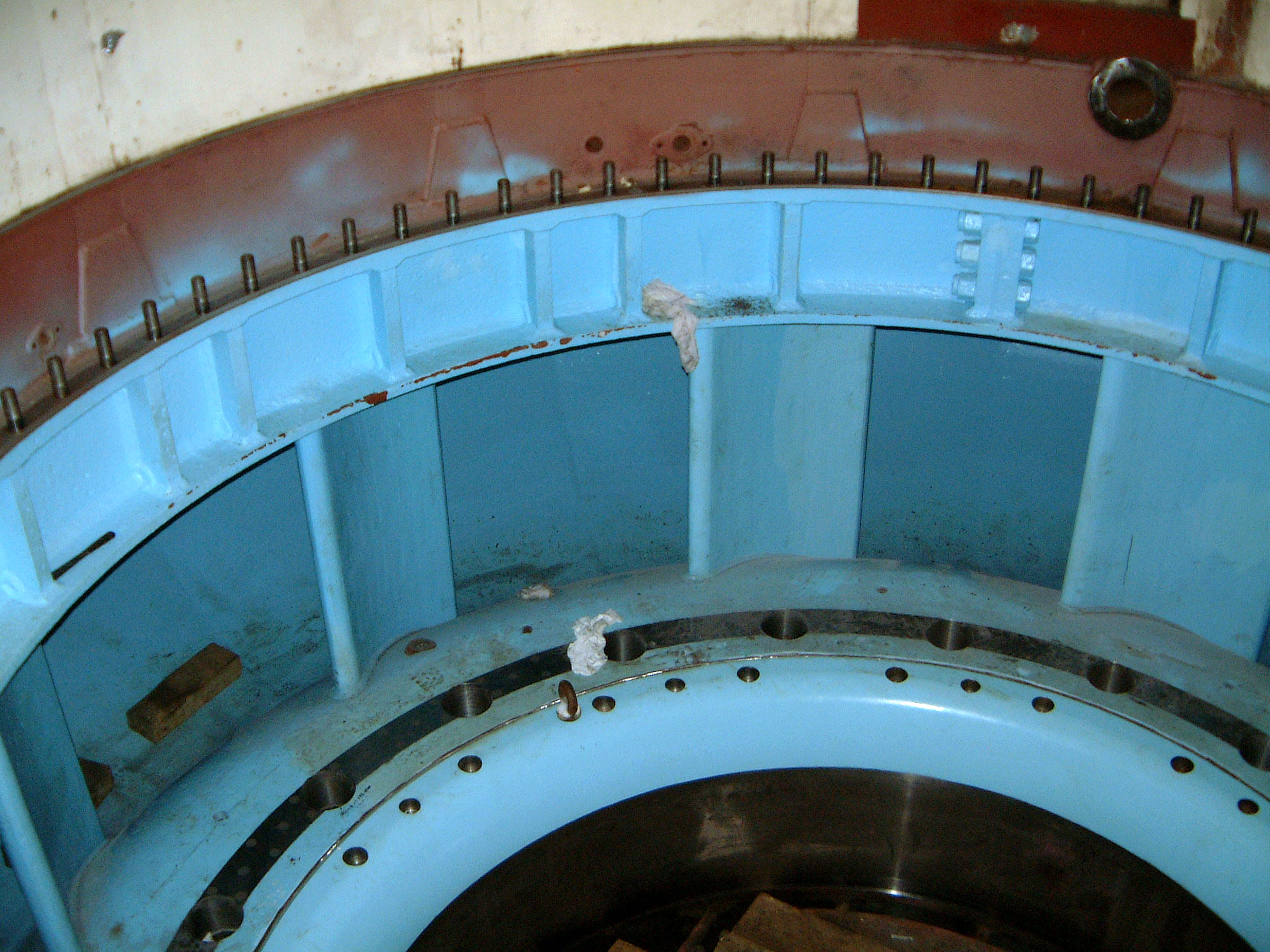

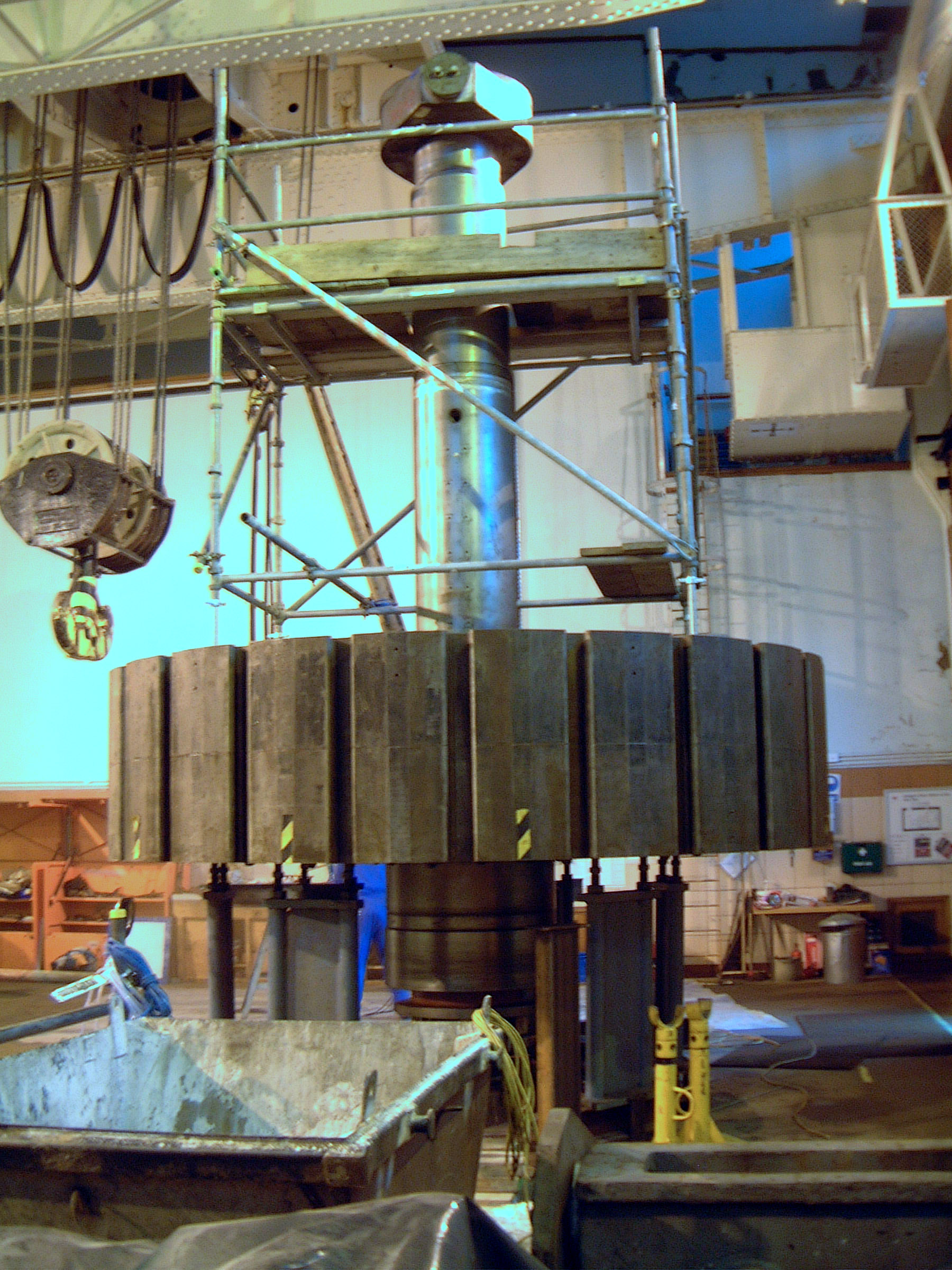

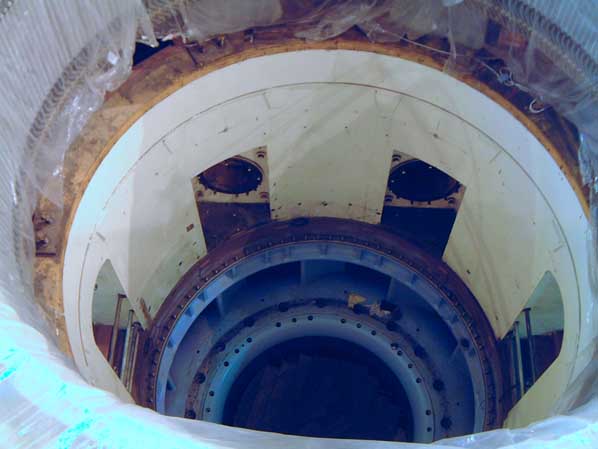

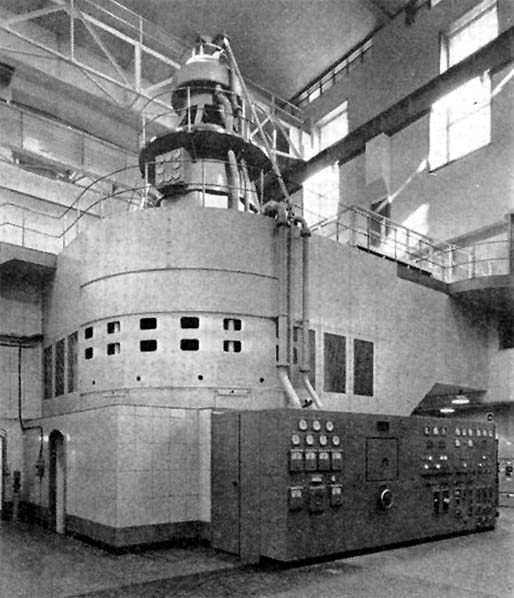

is all new: Photo by: Mike Ross For comparison, here's an archive shot of the alternator as built: Photo by: Mike Ross Another refurbishment picture: the alternator rotor removed: Photo by: Mike Ross The refurbishment provided the chance to see parts of the station that
are normally inaccessible. Here we're looking down the axis of the disassembled
machine. Past the stator windings (covered with protective plastic sheeting),
through the white-painted alternator support structure, to the turbine

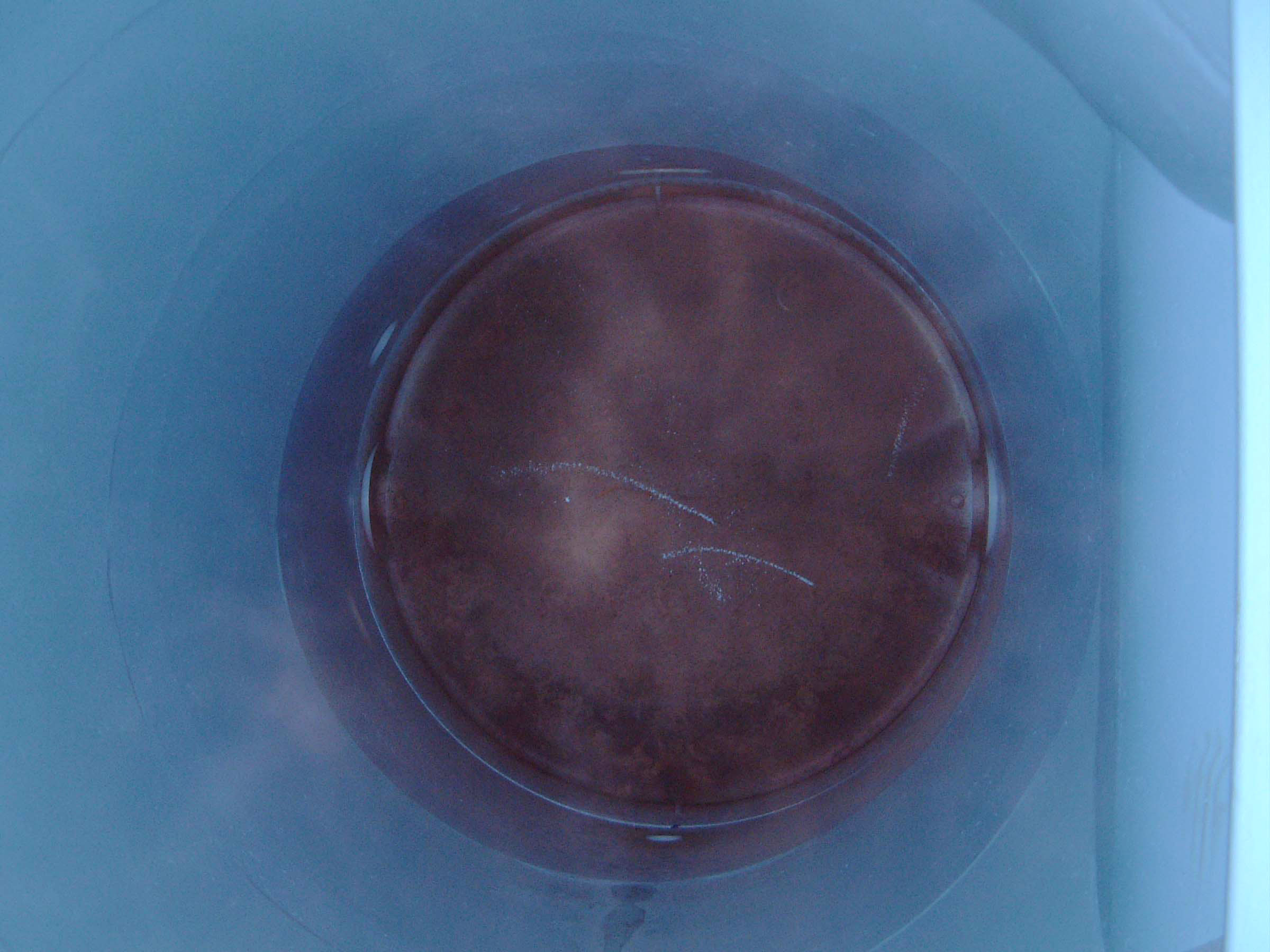

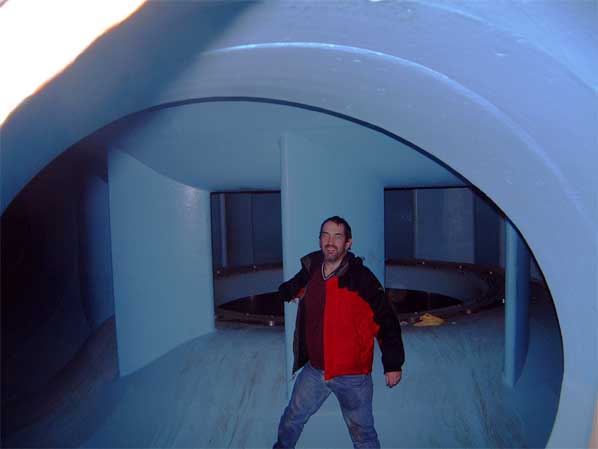

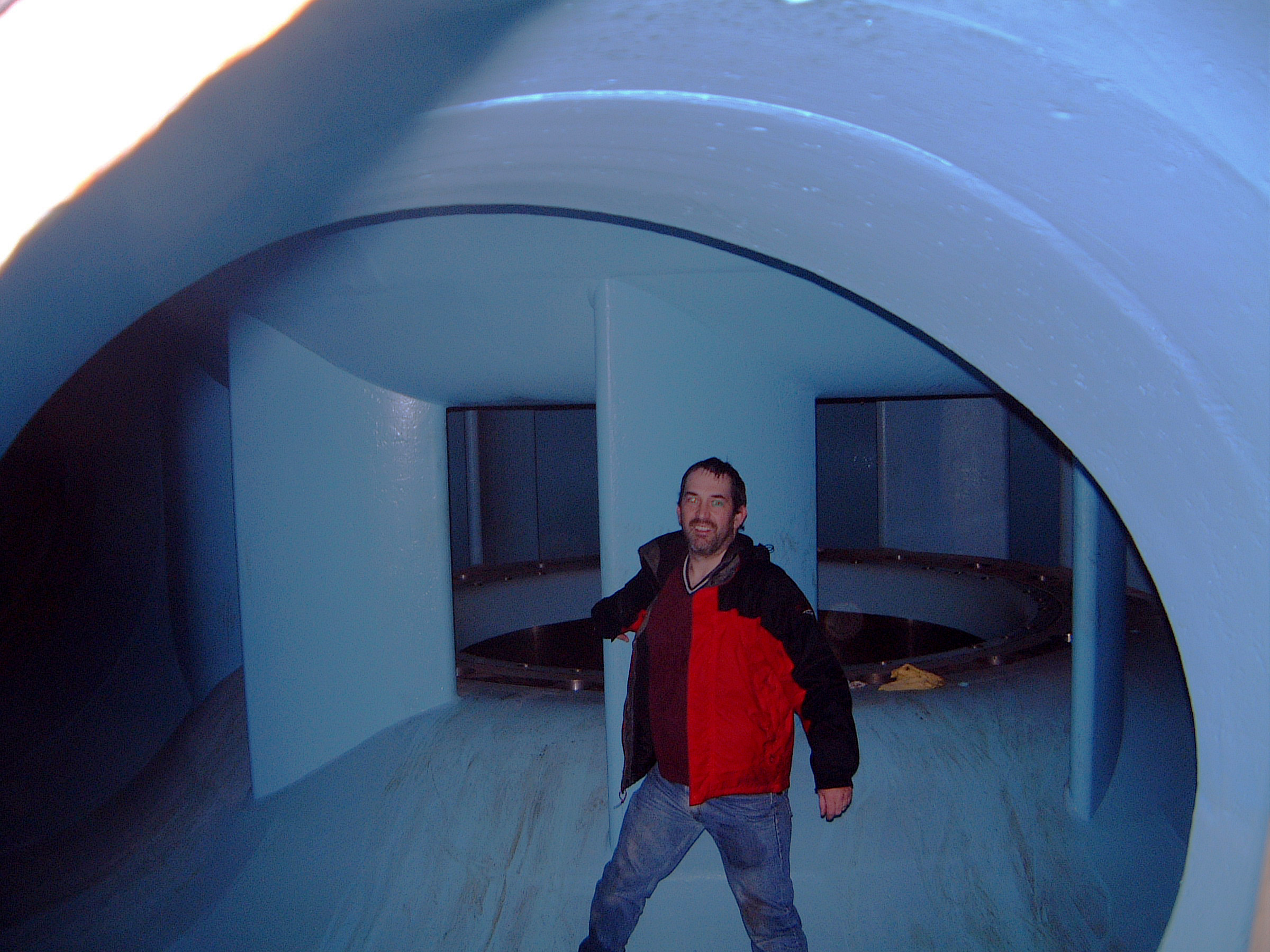

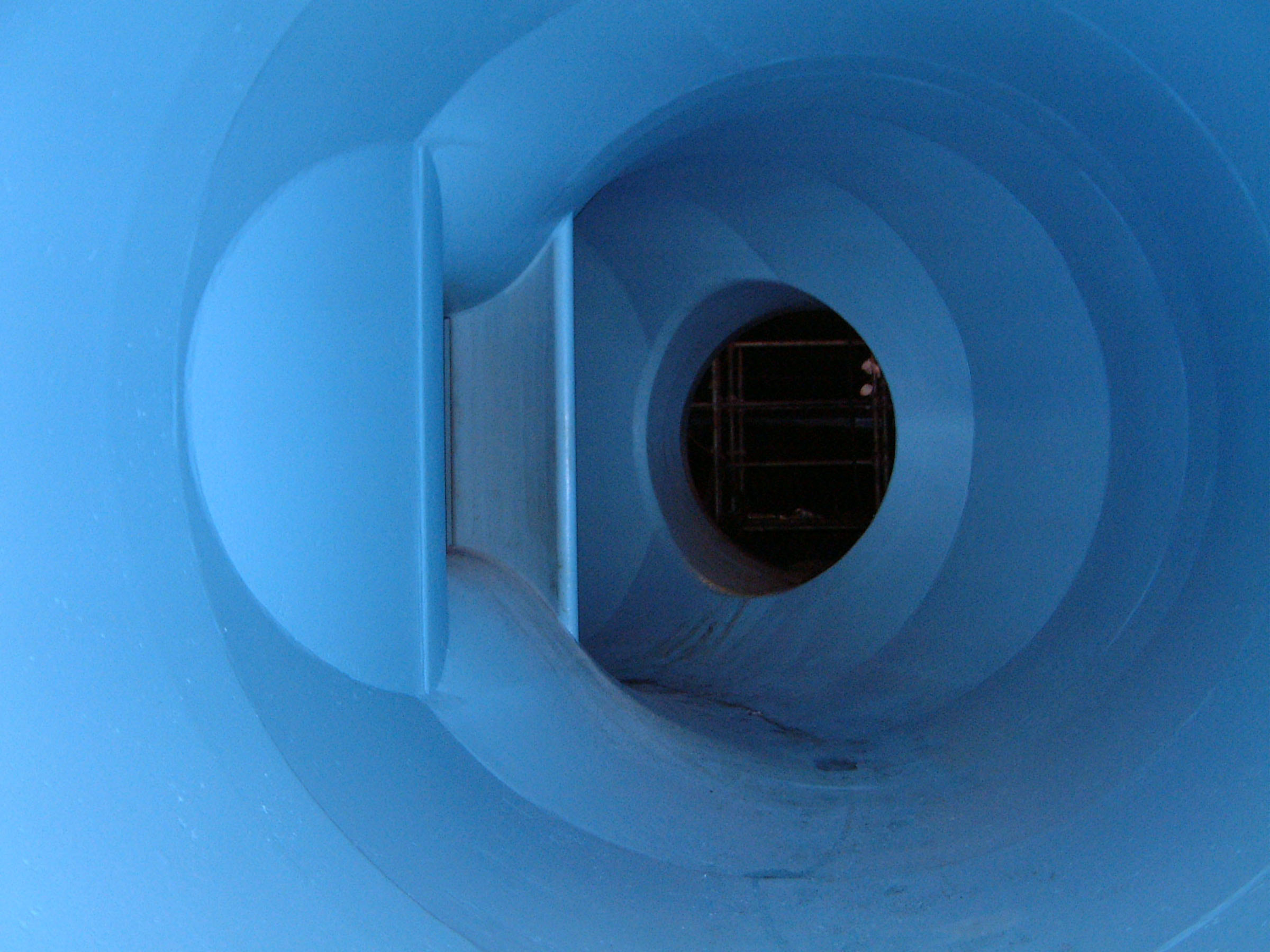

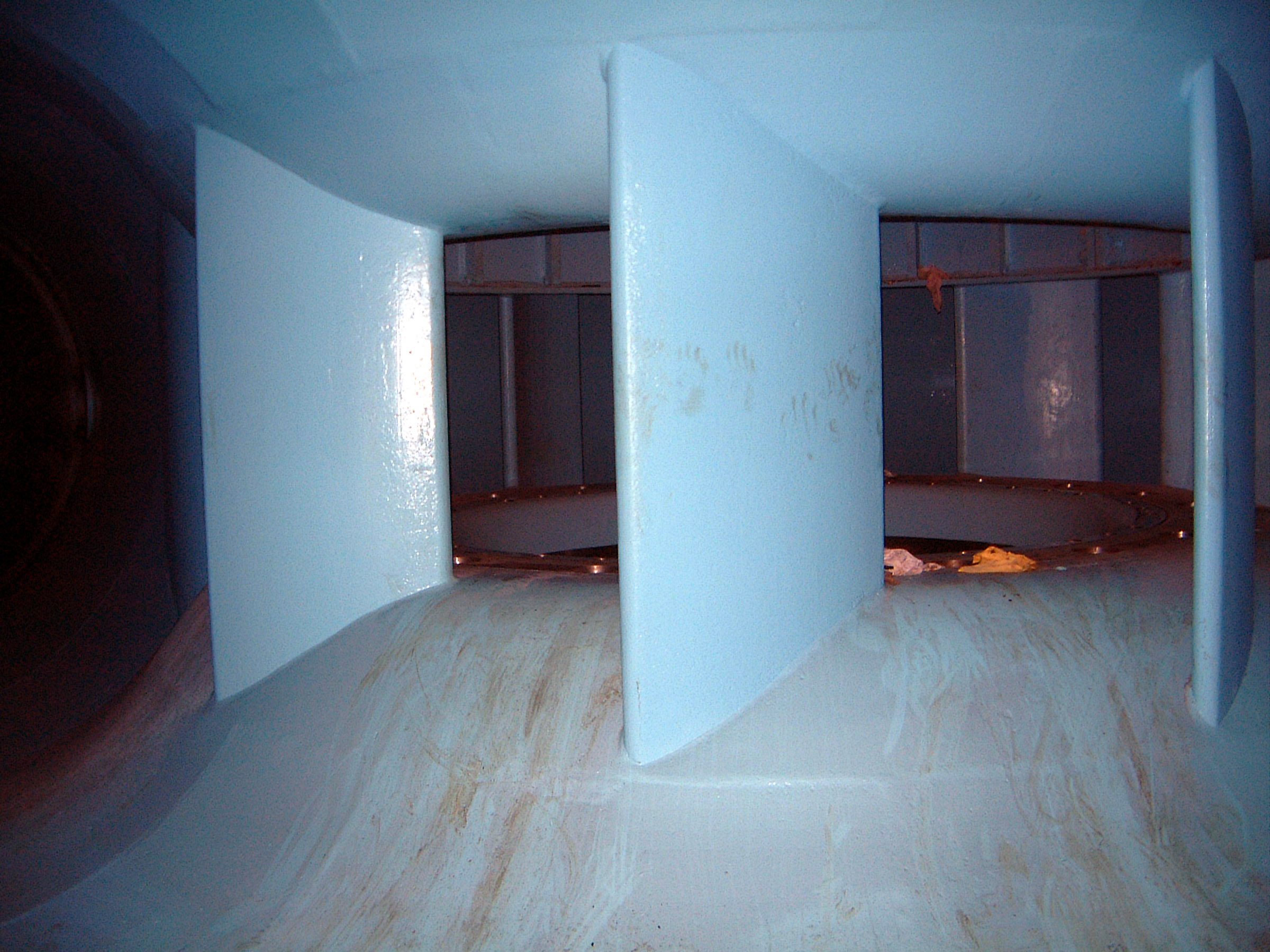

spiral casing and the start of the draft tube (blue painted): Photo by: Mike Ross Photo: Invergarry Power Station Photo by: Mike Ross Photo: Invergarry Power Station Photo by: Mike Ross Inside the spiral casing, with Your Intrepid Correspondant giving scale: Photo by: Mike Ross Inside the spiral casing, looking towards the relief valve (which would normally be where the scaffolding is): Photo by: Mike Ross Turning round 180 degrees from the above shot, looking upstream to the

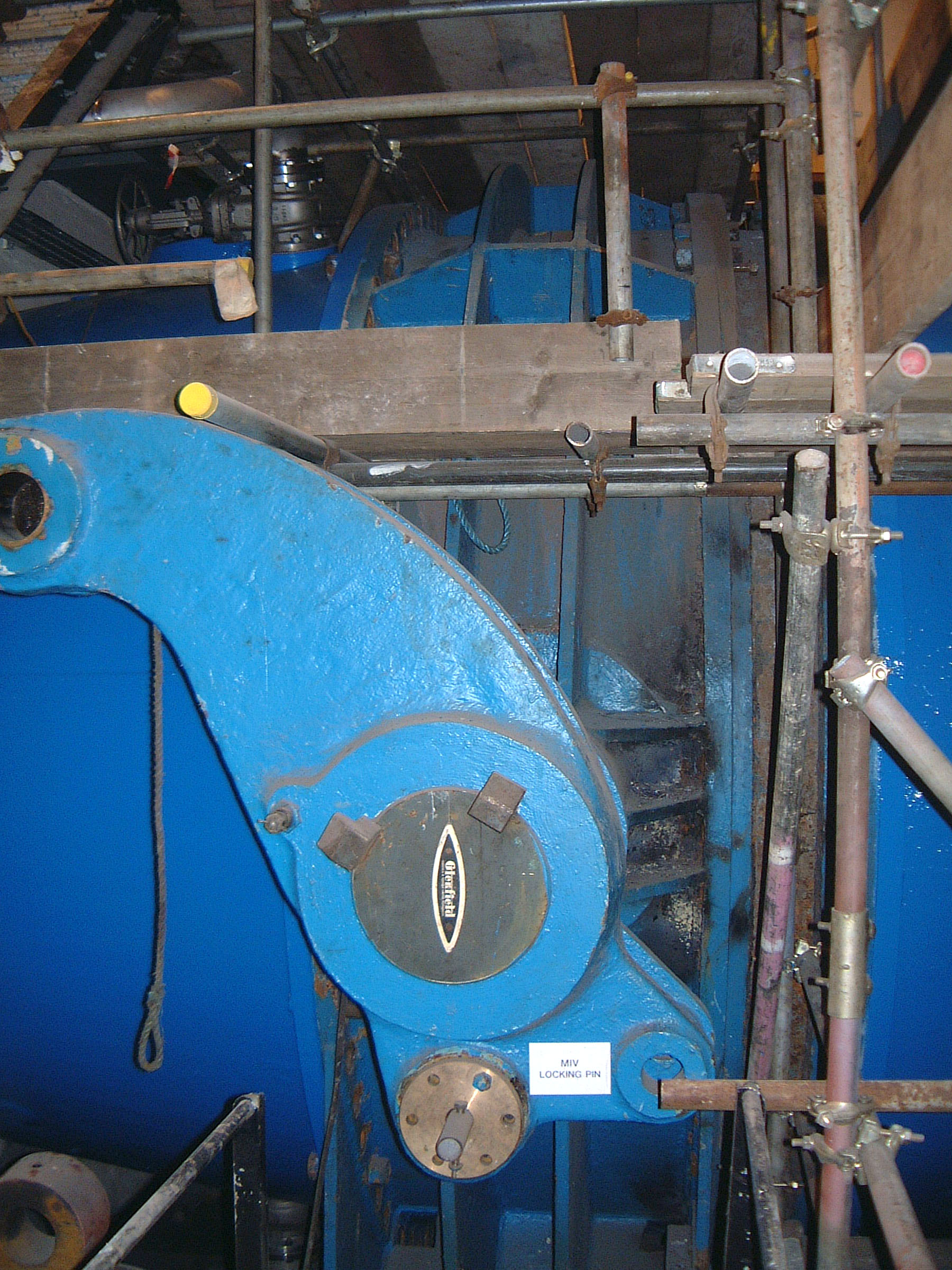

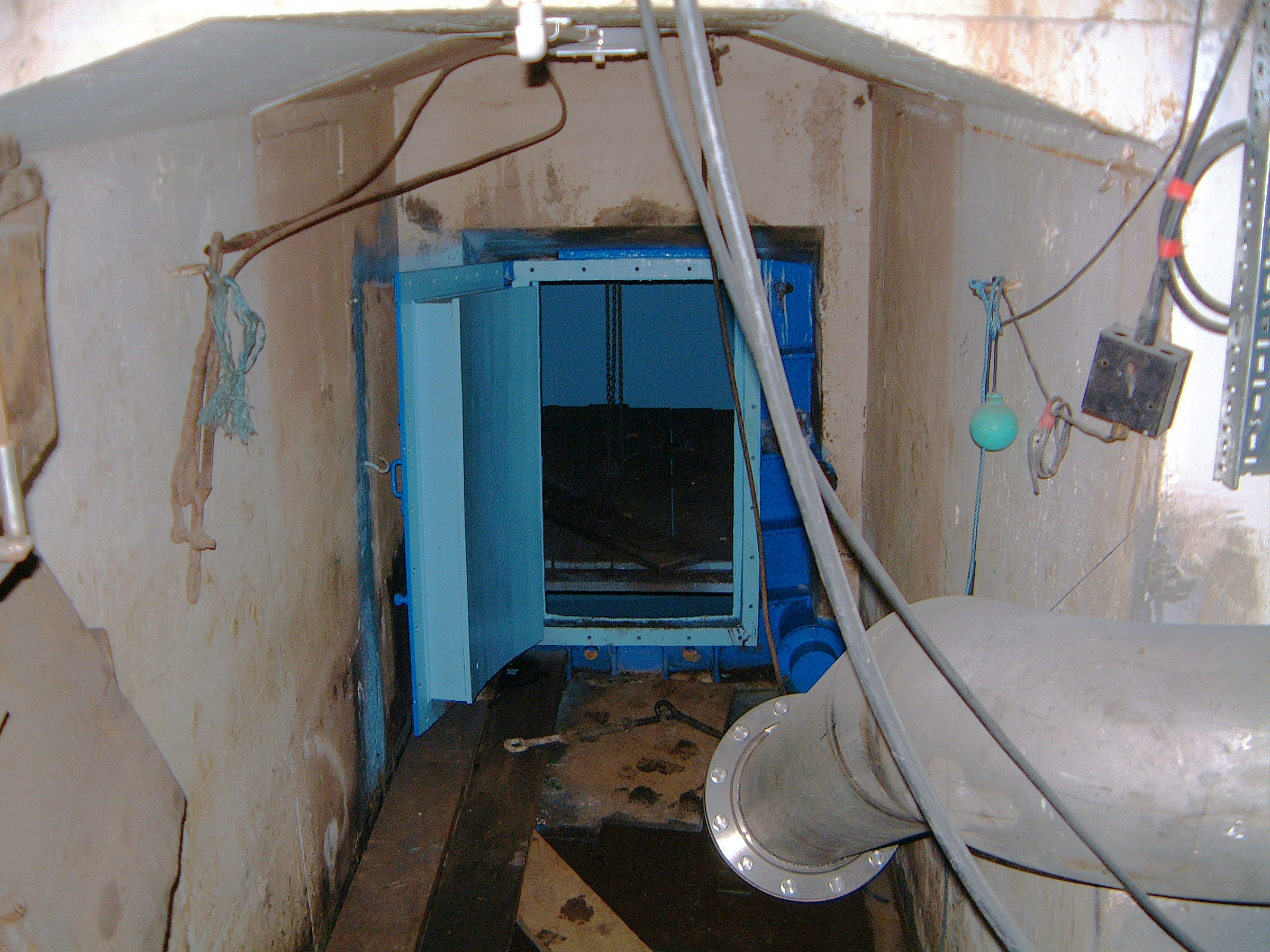

(closed) MIV: Photo by: Mike Ross In the valve chamber, looking at the MIV from the outside: Photo by: Mike Ross Also in the MIV chamber is the access passage to the draft tube. Here the
watertight door is open and the draft tube (normally full of water) is
full of scaffolding: Photo by: Mike Ross From the draft tube, a short but large tailrace tunnel runs under the A82
and discharges into Loch Oich, which at this point is little more than
a wide river. Normally full to the roof with water, the refurbishment provided

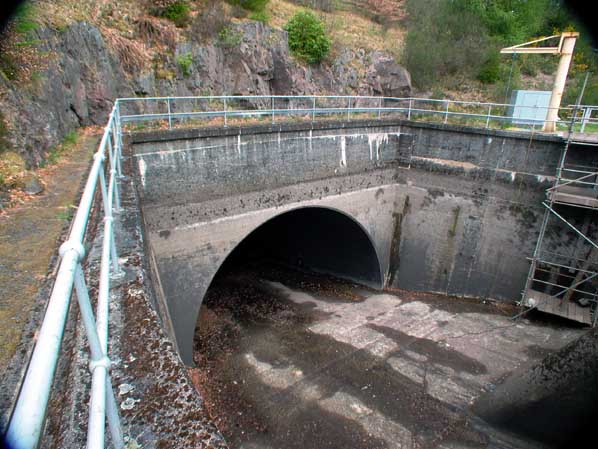

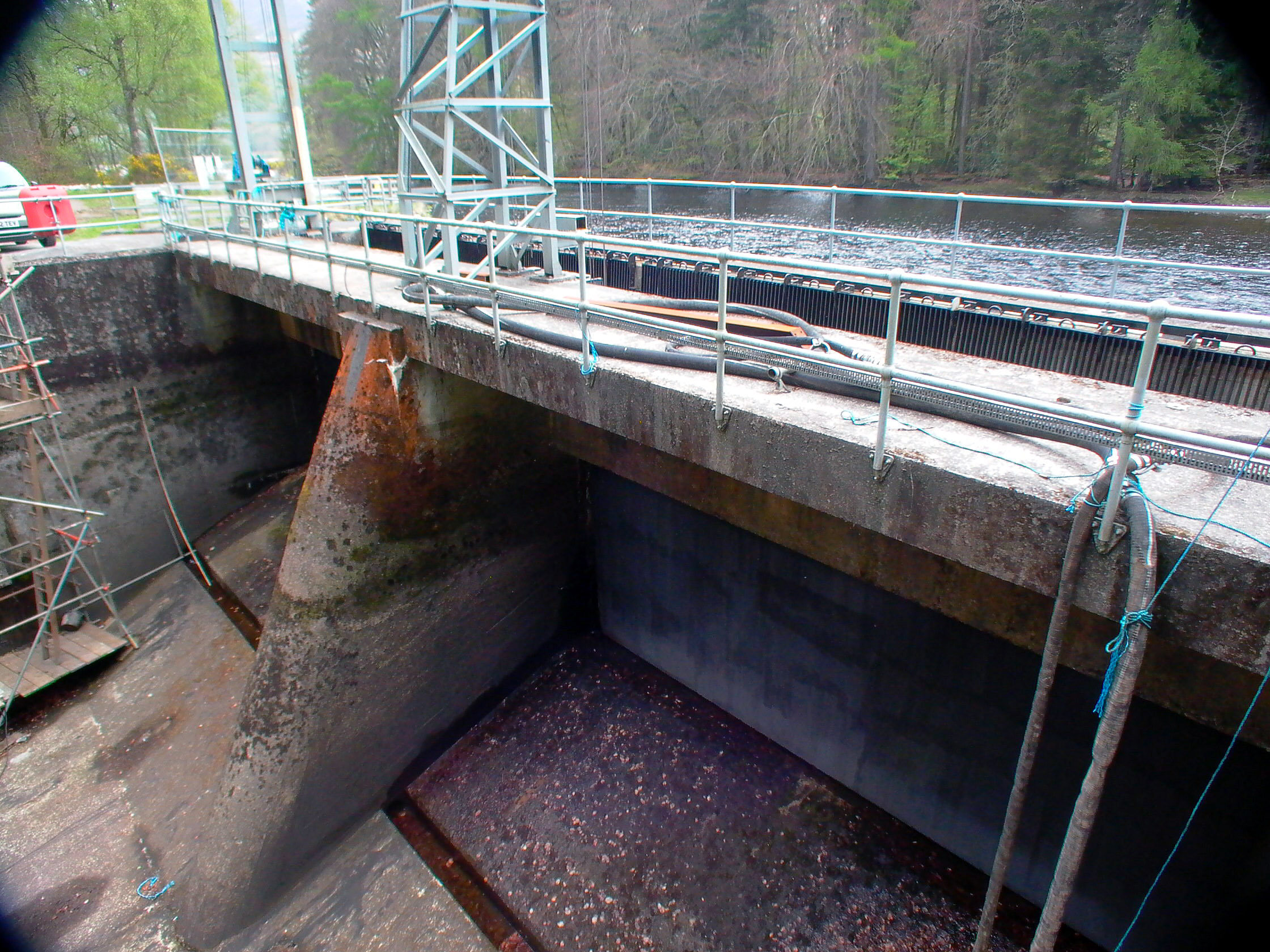

a chance to fully explore it. This image is looking at the outlet to the
tailrace - the big steel stoplog gates are in place, holding back the river
water. Note the scaffold tower on the extreme left, giving access to the tailrace: Photo by: Mike Ross Turning left from the above viewpoint, the exit of the tailrace tunnel
itself. It's normally totally submerged - see the obvious waterline on

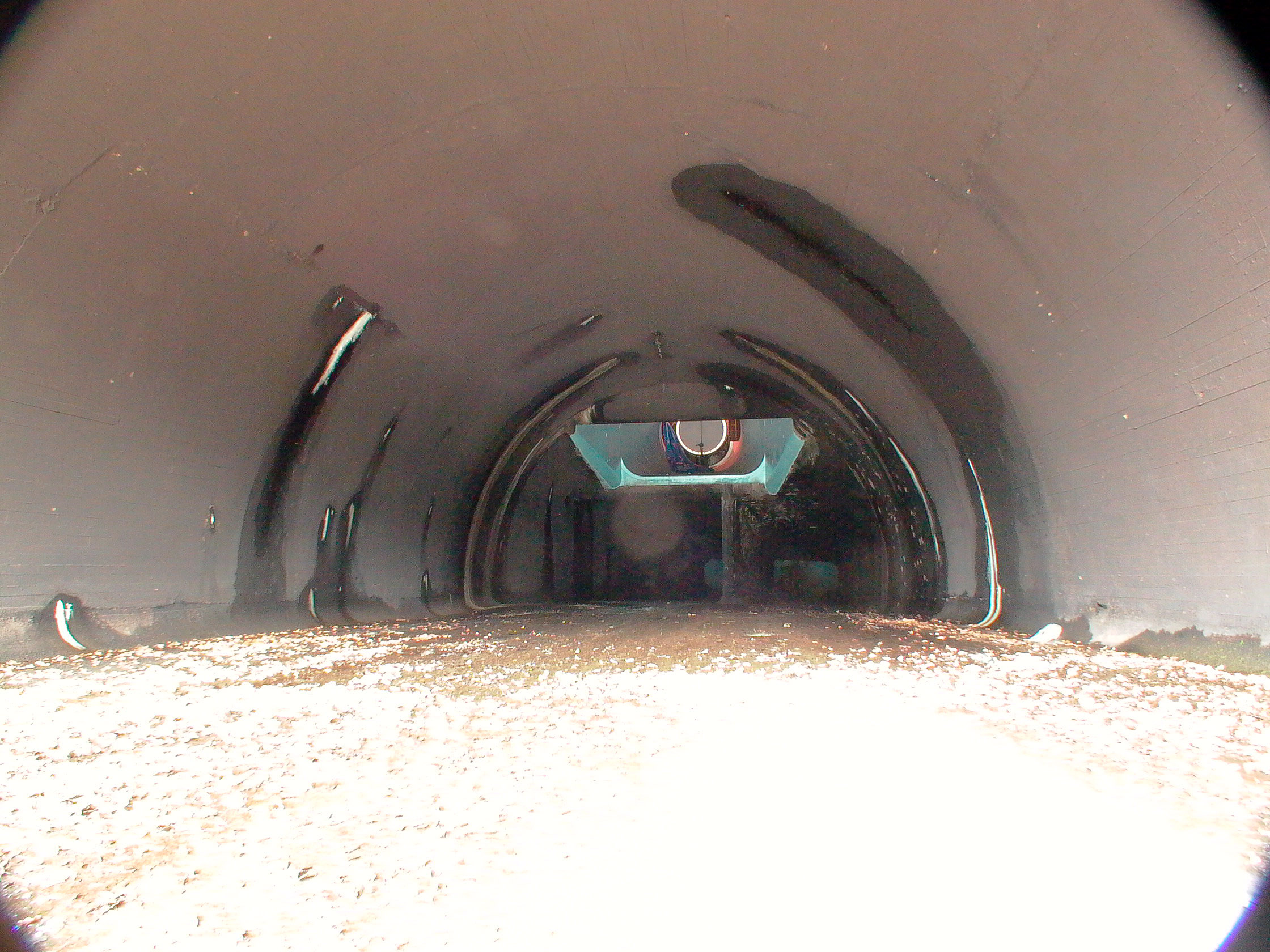

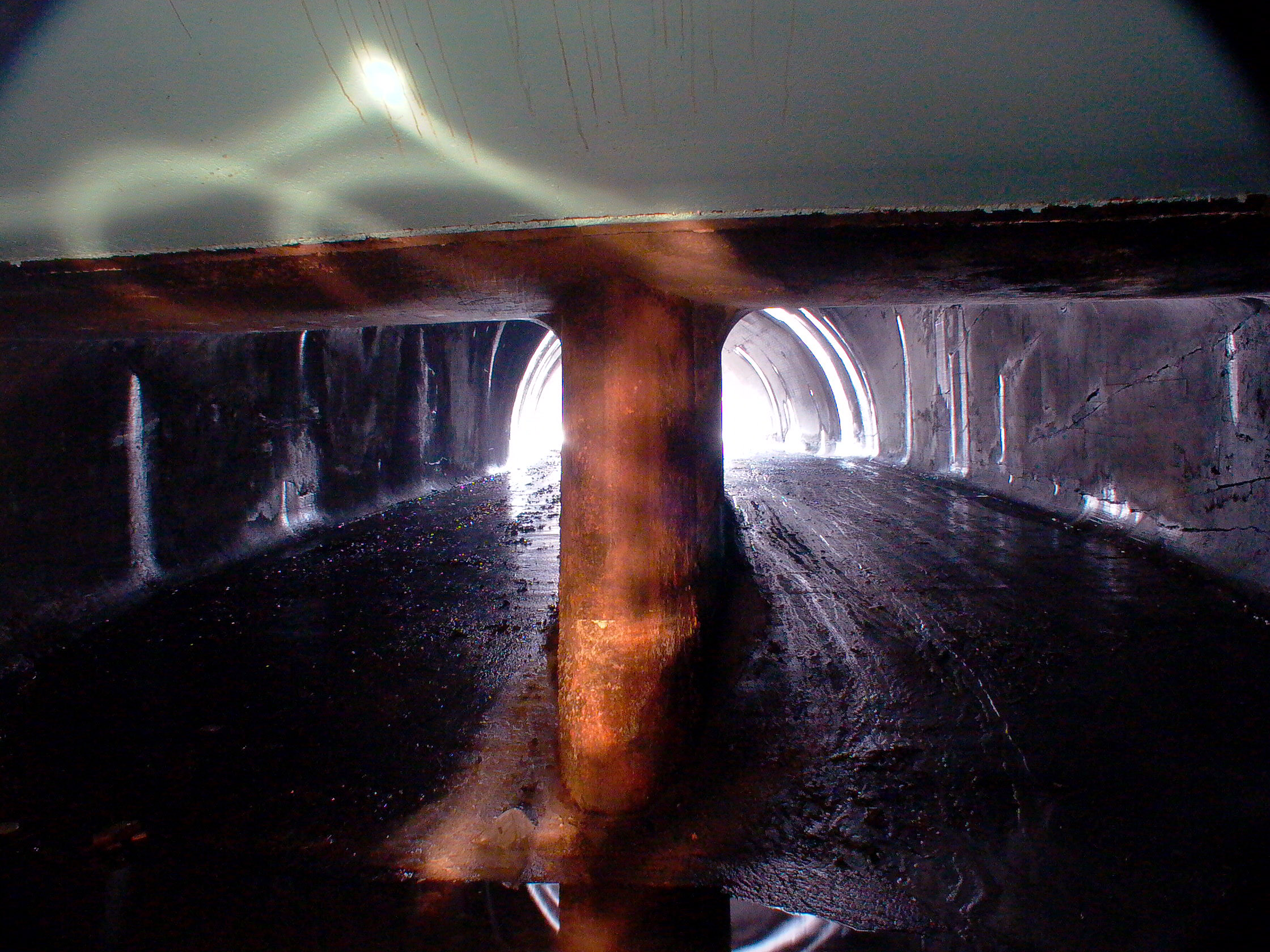

the concrete. Next we descend the scaffold tower...: Photo by: Mike Ross ...and look into the tunnel itself. Short, but large: Photo by: Mike Ross Your Intrepid Correspondant gives an idea of scale. The large blue-painted
area in the roof is the relief valve discharge duct. The relief valve itself
is removed for refurbishment, so you can see through to the interior of
the power station (with ladder etc.) and the end of the spiral casing where
the relief valve is mounted. (What is a relief valve for? To relieve transient
overpressure conditions which can arise in the spiral casing under certain
flow and surge situations, such as when load is shed rapidly) The blue

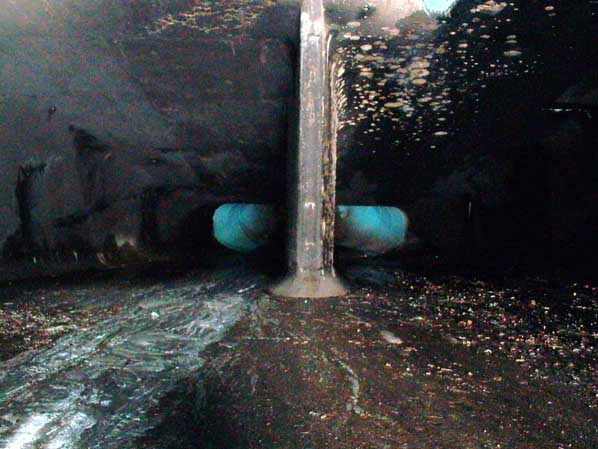

area behind me is the bottom of the draft tube: Photo by: Mike Ross Closeup of the draft tube bottom and splitter wall: Photo by: Mike Ross Standing in the very bottom of the draft tube, looking back up the tailrace,
past the splitter wall: Photo by: Mike Ross Home Page Last updated 6th February 2006 Style © 1998-2001 Subterranea Britannica Words and images © 2006 Michael J. Ross |
